Drawing in Weldia designer is done by manipulating parameters of predefined objects and putting them together.
With automatical alignment to grid, parameter steps and other visual guides, your drawings will be accurate.

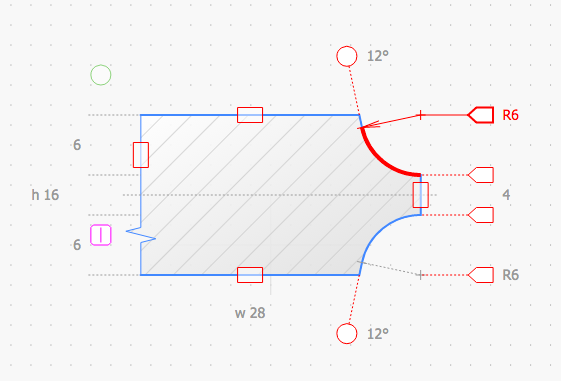

Control handles on each object are very intuitive and highlight the part of the object they influence.

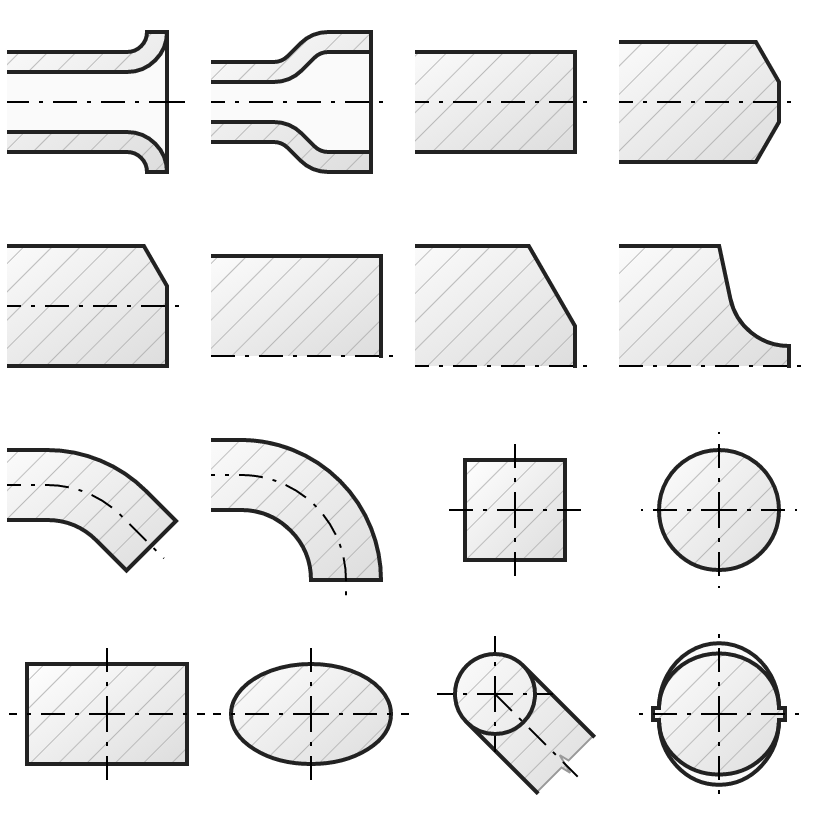

Weldia designer contains more than 80 fully parametric objects.
New objects are added with each update.

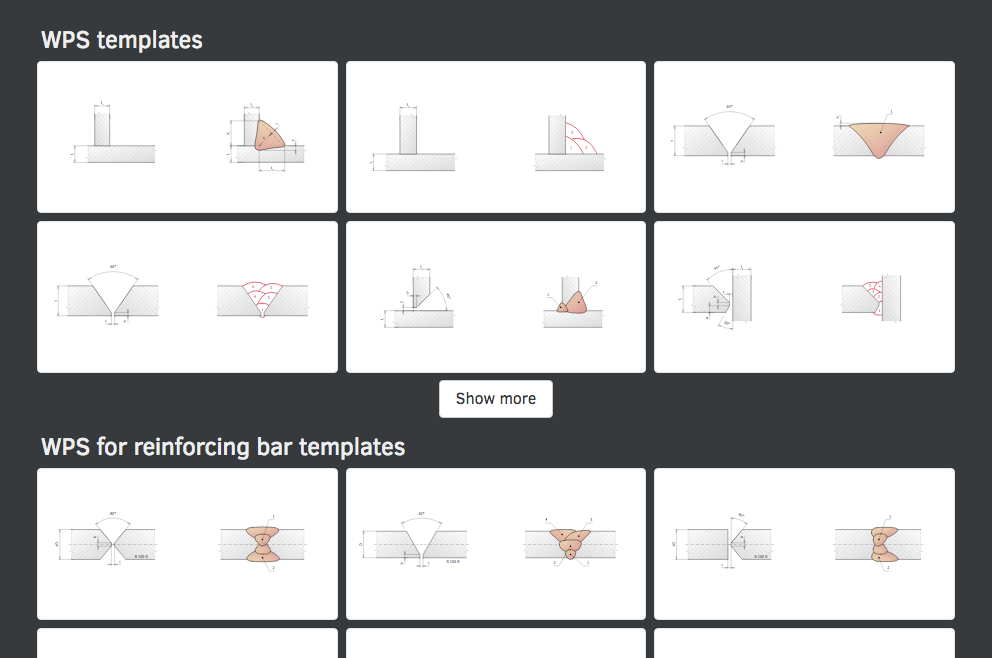

For each type of drawing, there are ready-to-use templates for the most typical or normalized cases.
You don't have to start from scratch, use one of our templates and modify it to suit your needs.
